WingOS Second Milestone

After several months of development, the second milestone of WingOS is now complete.
This release introduces a significant set of features focused on the filesystem and disk driver subsystems.

The primary objective of this milestone was to implement a foundational filesystem and disk driver to enable basic file read/write operations on a physical disk. This functionality establishes the groundwork for developing a more advanced userspace and running complex applications in future milestones.

The next major goal for the project is to successfully run DOOM on WingOS.

WingOS remains a microkernel-based operating system, meaning that many essential components-such as the init system, disk driver, EXT2 implementation, and VFS-operate entirely in userspace.

Init System and Dependencies

To properly initialize the disk and filesystem services, WingOS required a dependency-aware initialization system.
I developed a lightweight init loader capable of launching services in the correct order based on their declared dependencies.

Three categories of dependencies are currently supported:

• Hardware dependencies: The service will not start unless the required hardware is detected (e.g., a PCI NVMe controller for the NVMe driver).
• Service dependencies: The service will not start until another specified service has successfully launched (e.g., the ext2 service depends on the vfs service).
• Boot dependencies: The service waits for a specific boot stage before starting (e.g., the @fs stage, which is reached when all filesystems are mounted).

The init system starts services in parallel whenever possible to reduce boot times.
Configuration is defined via JSON files, as shown below:

{
    "modules": [
        {
            "name": "vfs-wingos",
            "path": "/bin/vfs-wingos"
        },
        {
            "name": "hello-world",
            "path": "/bin/hello-wingos",
            "requires": ["@fs"]
        },
        {
            "name": "ext4-wingos",
            "path": "/bin/ext4-wingos",
            "requires": ["vfs"]
        }
    ],
    "drivers": [
        {
            "name": "nvme-wingos",
            "path": "/bin/nvme-wingos",
            "pci": {
                "class-code": 1,
                "subclass-code": 8
            },
            "requires": ["vfs"]
        }
    ]
}

Filesystem Implementation

The highlight of this milestone is the implementation of a fully functional Virtual File System (VFS) and disk driver. The VFS layer, implemented in userspace, allows multiple filesystem types to coexist and be accessed through a unified API. Currently, only EXT2 is supported, but the design allows for straightforward integration of additional filesystems.

The EXT2 implementation supports file read/write operations and directory listing. The entire filesystem stack operates on top of a userspace NVMe driver, which communicates with the controller via PCI and handles all read/write requests.

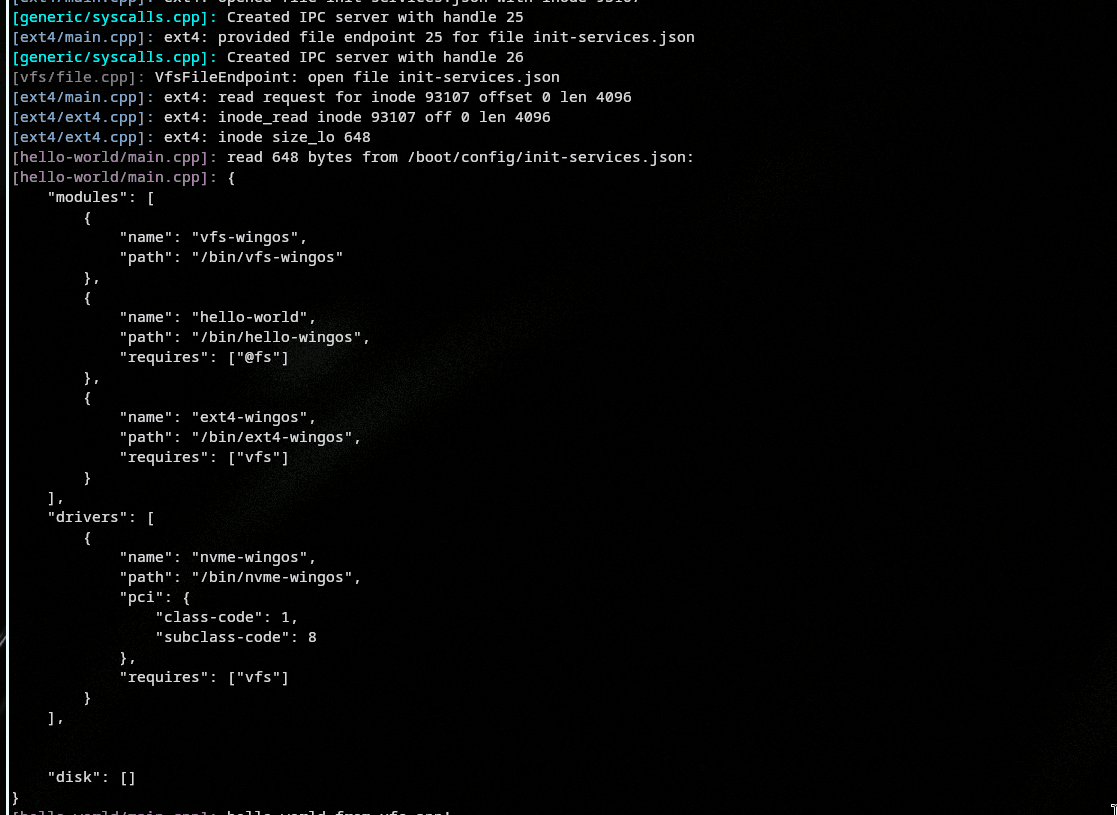

Logs of the hello-world application reading a file from the EXT2 filesystem.

Filesystem Loading Process

The filesystem initialization and mounting process proceeds as follows:

Process of mounting a disk and initializing a filesystem in WingOS.

• 1: The init system starts and launches the VFS service.
• 2: The NVMe and EXT2 drivers are started.
• 3: The NVMe driver detects and initializes the controller, registering the disk with the VFS.
• 4: The EXT2 service initializes and registers itself with the VFS.
• 5: The VFS scans each partition and queries the EXT2 service to verify validity.
• 6: The EXT2 filesystem mounts valid partitions and exposes them to VFS.
• 7:The VFS automatically mounts the first EXT2 partition as the root filesystem (/) and forwards all file access requests appropriately.

Future plans include adding support for additional filesystems and implementing new disk drivers (SATA, etc.).

Partition management (GPT parsing) will also be split into a dedicated service, allowing the VFS to mount subdisks directly.

Filesystem Access Model

In WingOS, file operations are relative, not absolute. Instead of opening /etc/passwd directly, an application would:

• 1: Open the root filesystem (/)
• 2: Obtain a handle to the etc directory, then open it
• 3: Then open the passwd file within it

Each file or directory access creates a new connection to a dedicated server managing that object (each server correspond to a unique file).

File operations -such as read, write, attribute queries, or directory listing- are performed through inter-process communication (IPC) with these file servers.

Applications can be sandboxed easily because directory traversal is restricted: access to .. (parent directories) can be disallowed. This model is inspired by the Fuchsia OS filesystem model.

All filesystem interactions are mediated by the VFS service, which forwards requests to the appropriate filesystem service. For instance:

Sequence of operations for opening the root directory (‘/’) in WingOS.

When an application requests access to /, the VFS forwards the request to the EXT2 service, which reads the root inode and returns a handle. This handle is then passed back through the VFS to the requesting application, provided that access permissions allow it.

Note: Remember that in this case, a handle is a server endpoint that you can do IPC with to perform operations on the file.

To maximize performance, WingOS minimizes memory copying: during read/write operations, only handles are transferred, and data is mapped once into memory. The buffer is then accessed directly by the ext2 driver, ensuring efficient data transfer with minimal overhead.

I want to the future implement 0-copy between processes when copying block of memory that are disk-aligned.

Miscellaneous Improvements

Additional features and refinements introduced in this milestone include:

• A new syscall for querying asset information (e.g., physical memory address and metadata).
• Numerous kernel and userspace bug fixes.
• General cleanup and structural improvements to the codebase.

Conclusion

You can explore or contribute to the project on the WingOS GitHub repository.

The next milestone will focus on improving the userspace experience by introducing:

• Mouse and keyboard drivers
• A framebuffer driver
• A C standard library port (potentially using mlibc ?)
• And, of course, a DOOM port running natively on WingOS.

Stay tuned for more updates!
